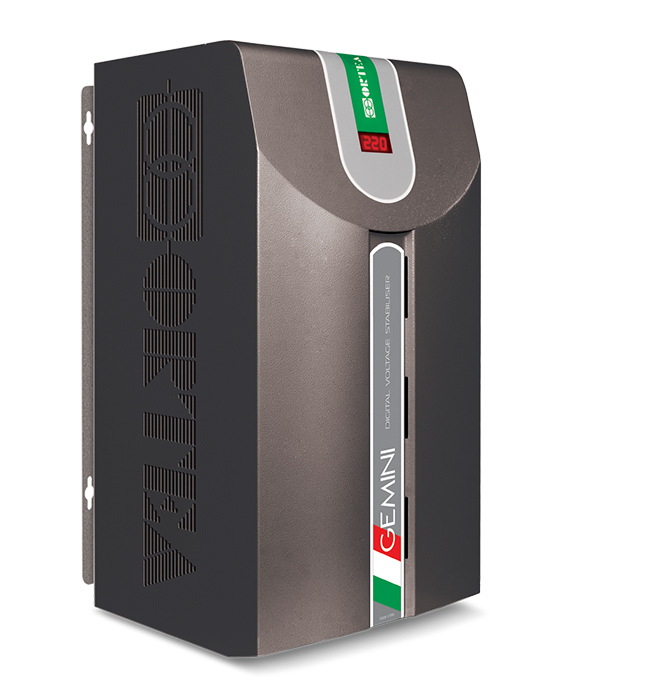

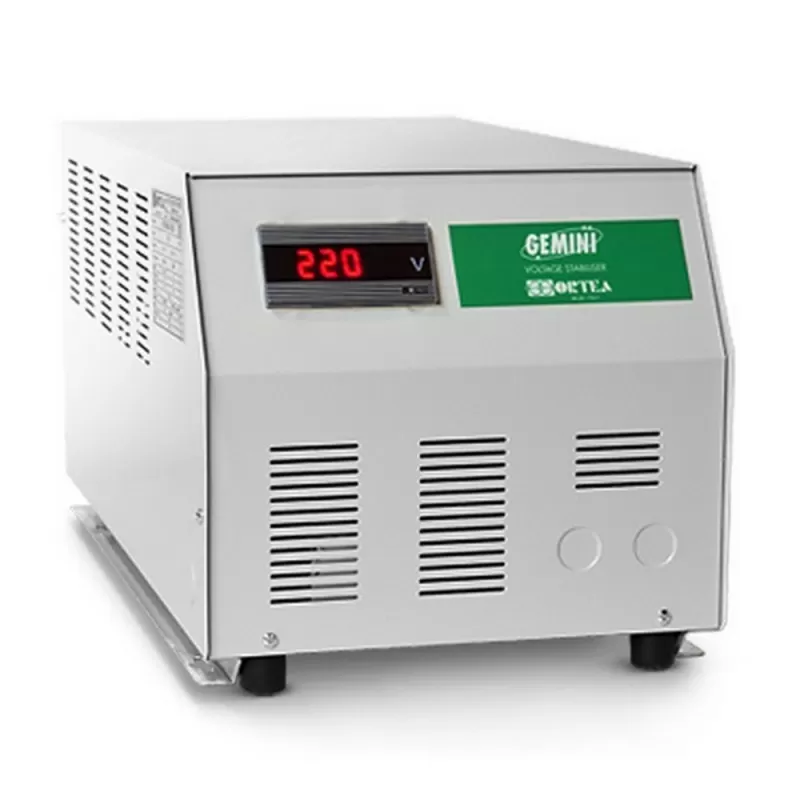

Ortea Gemini (Plus)
Price:
Call for Price
🔍 Product Overview
0.5 – 15 kVA | ±15% to ±25% Input Variation | Single-Phase & Three-Phase
The Ortea Gemini series is a versatile compact voltage stabilizer that delivers both precise voltage regulation and electrical protection in one integrated unit. With power ratings from 0.5 kVA to 15 kVA, it is designed to correct mains fluctuations, suppress disturbances, and filter out electrical noise—making it ideal for residential, commercial, and small industrial applications.
It combines servo-controlled voltage regulation, galvanic isolation, EMI/RFI filtering, and surge protection in a space-saving format. If your sensitive electronics are suffering from brownouts, surges, or noise interference, Gemini provides a plug-and-play, long-lasting solution.
Description
📞 Call Now: +254 707 122 122 | 🛒 Order Online: shopstemaengineering.com
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Power Range | 0.5 kVA to 15 kVA |
| Input Voltage Variation | ±15% to ±25% (model dependent) |
| Output Voltage Accuracy | ±1.5% |
| Voltage Control System | Servo-motor (electromechanical) |
| Galvanic Isolation | Integrated transformer |
| EMI/RFI Filtering | Built-in noise filtering |
| Surge Protection | Metal Oxide Varistors (MOV) included |
| Phase Options | Available in single-phase and three-phase |
| Cooling Method | Natural convection (small models), forced air (larger units) |
| Frequency | 50/60 Hz compatible |
| Efficiency | Up to 96% |
| Enclosure Protection | IP20 (standard indoor use) |
| Certifications | CE compliant, ISO 9001 certified |
| Manufacturer | 🇮🇹 Ortea SpA – Made in Italy |
✅ Key Features & Benefits
🎯 Precise Voltage Regulation
The Gemini ensures a stable output voltage with ±1.5% accuracy, even with severe input variations up to ±25%. This is crucial for environments prone to brownouts or overvoltages.
🛡️ Full Electrical Protection
With built-in MOV-based surge protection and EMI/RFI filtering, the Gemini shields your loads from spikes, surges, and high-frequency noise.
🔌 Galvanic Isolation
Prevents electrical noise and ground loop interference by isolating the output from the input—ideal for sensitive electronic devices.
🧱 Compact & Integrated Design
All protective and conditioning functions are integrated into one enclosure, reducing footprint and installation time.
🌍 Multi-Application Use
Widely adopted in medical labs, data equipment rooms, telecom systems, retail shops, offices, and industrial PLC controls.
🏭 Application Areas
| Sector | Typical Usage |
|---|---|
| Telecom | PBX systems, signal processing, network routers |
| Healthcare | Diagnostic devices, lab equipment |
| Offices/IT | PCs, modems, printers, servers |
| Retail | POS systems, barcode readers, display systems |
| Industry | CNC controls, low-power machinery, automation panels |
| Home Use | Audio-video systems, smart electronics, refrigerators |
🆚 Comparison: Ortea Gemini vs Standard Stabilizers
| Feature | Ortea Gemini | Basic Stabilizers |
|---|---|---|
| Output Voltage Accuracy | ±1.5% | ±5% |
| Input Tolerance Range | Up to ±25% | Typically ±15% |
| Isolation Transformer | ✅ Built-in | ❌ Not included |
| EMI/RFI Filtering | ✅ Yes | ❌ Rare |
| Surge Protection | ✅ Integrated MOVs | ❌ External or optional |
| Design | All-in-one compact | Separate devices required |
📦 Model Variants
| Model | Power Rating | Input Variation | Applications |
|---|---|---|---|
| Gemini 1 | 1 kVA | ±15% | IT equipment, routers |
| Gemini 5 | 5 kVA | ±20% | Lab or office use |
| Gemini 10 | 10 kVA | ±25% | Industrial panels, PLCs |
| Gemini 15 | 15 kVA | ±25% | Telecom, medical diagnostics |
🌐 Customization Options
-
🔧 Input/output voltage settings (110/230/400V)
-
🔌 Plug-and-play connections or hardwiring
-
🛠️ Manual bypass switch
-
📊 Status indicators or display panel
-
🌐 Remote diagnostics (on request)
🛡️ Why Buy Ortea Gemini from Shop Stema Engineering?
✅ Authorised Distributor in Kenya & East Africa
🧰 Expert Advice & Load Assessment Services
🛠️ Installation & After-Sales Support
📦 Fast Delivery, Genuine Warranty Units
📞 Call Support at +254 707 122 122
🛒 Ready to Order?
Keep your systems safe from erratic voltages and dirty power with the Ortea Gemini—a compact, intelligent solution for regulated, clean power.
📞 Call Now: +254 707 122 122
🌍 Visit: www.shopstemaengineering.com
