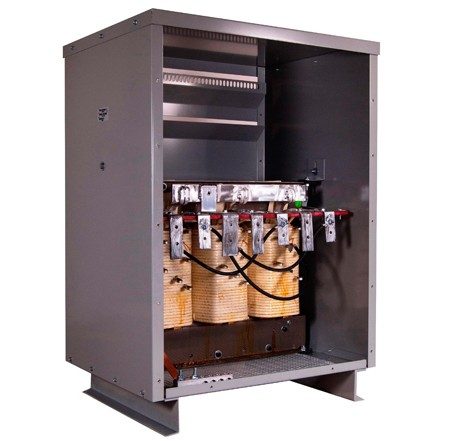

Eaton Low-Voltage (LV) Transformers (Up to 600 V | 0.5β500 kVA)
Price:
Call for Price
π§ Product Overview
Eaton Low-Voltage (LV) Transformers are engineered to deliver efficient, reliable power conversion for a wide range of commercial, industrial, and institutional environments. With ratings from 0.5 kVA to 500 kVA, these transformers operate at voltages up to 600 V, making them ideal for lighting, motor loads, panelboards, HVAC systems, and process equipment.
Whether used in new construction or retrofit applications, Eaton LV transformers provide enhanced electrical performance, minimal losses, and quiet operation, all in compact, robust enclosures suitable for indoor or outdoor installation.
Description
Dependable Power Distribution for Commercial & Industrial Applications (Up to 600 V | 0.5β500 kVA)
π Call/WhatsApp: +254 707 122 122 | π shopstemaengineering.com
βοΈ Technical Specifications
| Feature | Typical Values / Options |
|---|---|
| Primary Voltage | 120 V, 208 V, 240 V, 480 V, 600 V |
| Secondary Voltage | 120 V, 208 V, 240 V, 480 V |
| Power Rating | 0.5 β 500 kVA |
| Frequency | 50 Hz / 60 Hz |
| Phase | Single-phase & Three-phase |
| Insulation Class | Class 180Β°C (Class H) |
| Temperature Rise | 80Β°C, 115Β°C, or 150Β°C (standard options) |
| Cooling Type | Air-cooled (Dry-type, ventilated or encapsulated) |
| Enclosure Types | NEMA 1, NEMA 3R, NEMA 12 |
| Compliance | UL, CSA, DOE 2016, ANSI, IEEE |
π Key Features & Benefits
β High Efficiency
-
Meets or exceeds DOE 2016 efficiency standards
-
Optimized for minimal no-load and full-load losses
π Quiet Operation
-
Precision magnetic design and robust enclosures reduce vibration and noiseβperfect for offices and schools
π‘οΈ Thermal Protection
-
Temperature rise and insulation options allow safe operation under varying load and ambient conditions
π Wide Voltage Configurations
-
Multiple primary and secondary voltages support a variety of distribution schemes and load types
π Rugged, Safe Construction
-
NEMA-rated enclosures protect against dust, moisture, and corrosion, ensuring long lifespan
𧩠Eaton Transformer Types
| Type | Application | Phase | Cooling |
|---|---|---|---|
| General-Purpose Transformers | Lighting, office power, receptacles | 1Ξ¦ / 3Ξ¦ | Dry, ventilated |
| Encapsulated Transformers | Damp, dusty, or corrosive environments | 1Ξ¦ / 3Ξ¦ | Dry, epoxy-sealed |
| Drive Isolation Transformers | VFD and motor protection | 3Ξ¦ | Dry |
| Buck-Boost Transformers | Voltage adjustment (small scale) | 1Ξ¦ | Dry |
| K-Rated Transformers | Non-linear loads (e.g. data centers) | 3Ξ¦ | Dry |
π Eaton vs Other Low-Voltage Transformer Brands
| Feature | Eaton LV Transformers | Typical Alternatives |
|---|---|---|
| Efficiency Compliance | β DOE 2016 / CSA C802.2 | β οΈ May not meet all standards |
| Enclosure Options | β NEMA 1 / 3R / 12 | πΈ Limited to NEMA 1 or 3R |
| Harmonic Handling (K-Rated) | β Yes (K4, K13, K20) | πΈ Not all models available |
| Application Flexibility | β General, Drive, Data Center | β οΈ More specialized only |
| Availability & Support | β Global + Local Partners | β οΈ Region-dependent |
π’ Use Case Examples
| Sector | Typical Applications |
|---|---|
| Commercial Buildings | Lighting panels, HVAC, elevators |
| Industrial Plants | Motor loads, machine tools, control panels |
| Healthcare | Medical equipment, imaging rooms, patient safety systems |
| Education Facilities | Classroom tech, IT rooms, energy-efficient lighting |
| Retail & Hospitality | Signage, POS systems, kitchen equipment |
π¦ Sample Product Configurations
| Model | kVA Rating | Primary / Secondary | Type | Enclosure |
|---|---|---|---|---|
| V48M28T2016 | 45 kVA | 480 V / 208Y/120 V | General-Purpose (3Ξ¦) | NEMA 3R |
| V41M11T2016 | 15 kVA | 240×480 V / 120/240 V | Single-Phase Encapsulated | NEMA 3R |
| V48M32T2016-K13 | 75 kVA | 480 V / 208Y/120 V | K-Rated Transformer | NEMA 1 |
| V1E11T2016 | 0.75 kVA | 240 V / 24 V | Buck-Boost (1Ξ¦) | NEMA 1 |
π οΈ Why Buy from Shop Stema Engineering?
-
β Expert configuration advice
-
π Timely delivery & installation services
-
π§ Custom load-matching & sizing support
-
π§ͺ Testing and on-site commissioning
-
π Documentation & drawings provided
π Get an Eaton Low-Voltage Transformer Quote Now
Eaton LV transformers are trusted across the globe for quality, safety, and performance. Power your projects with dependable distributionβcustomized for your needs.
